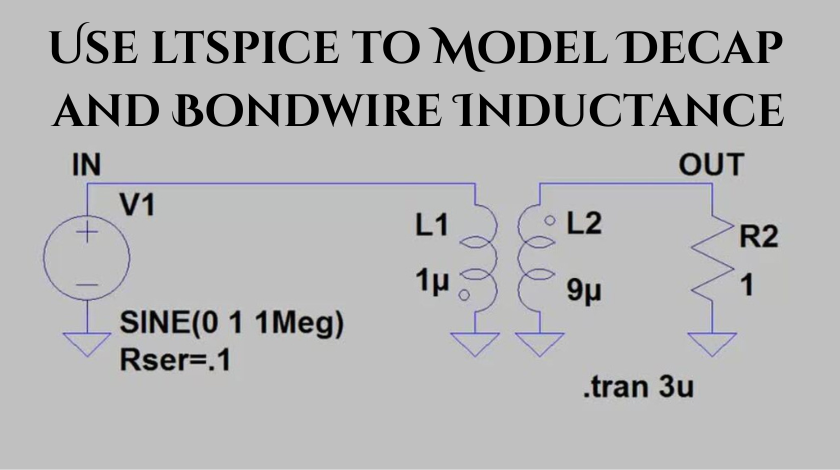

Use ltspice to Model Decap and Bondwire Inductance

LTspice is an incredible tool for anyone working with electronic circuits. It’s free, powerful, and lets you simulate how your designs will perform before you ever solder a single component. In this guide, we’re diving deep into how to use LTspice to model two key elements that can make or break your circuit: decoupling capacitors (often called decaps) and bondwire inductance. These might sound like small details, but in high-speed or sensitive designs, they’re game-changers.

Whether you’re an engineer fine-tuning a power supply or a hobbyist curious about circuit simulation, this article will walk you through everything you need to know. We’ll cover what these components are, why they matter, and how to model them step-by-step in LTspice. Plus, we’ll throw in examples, diagrams, handy tables, and even an FAQ section to answer those nagging questions. Ready to level up your LTspice skills? Let’s get started!

What Is LTspice and Why Does This Matter?

LTspice is a circuit simulation software developed by Linear Technology (now part of Analog Devices). It’s based on SPICE (Simulation Program with Integrated Circuit Emphasis), a standard for testing electronic designs. With LTspice, you can draw schematics, run simulations, and analyze how your circuit behaves under different conditions all without touching a breadboard.

So, why focus on decoupling capacitors and bondwire inductance? In real-world circuits, especially those running at high speeds or frequencies, these elements play a massive role:

• Decoupling Capacitors: These little heroes keep your voltage stable by filtering out noise and supplying quick bursts of current when your circuit demands it. Without them, your digital ICs might glitch, or your analog signals could get messy.

• Bondwire Inductance: This is the sneaky inductance from the tiny wires connecting a chip to its package. It can mess with high-speed signals, causing delays or distortion if you don’t account for it.

Modeling these in LTspice lets you predict problems and tweak your design before they happen. It’s like having a crystal ball for your circuits!

Decoupling Capacitors: The Unsung Heroes of Circuit Design

What Are Decoupling Capacitors?

Decoupling capacitors, or decaps, are placed in circuits to smooth out voltage fluctuations. Think of them as tiny backup batteries sitting close to your components. When an IC suddenly draws current like when a digital chip switches states the decap jumps in to provide that power instantly, keeping the voltage steady.

They’re especially critical in:

• Digital Circuits: Where fast switching creates noise.

• Power Supplies: To filter out ripples.

• Mixed-Signal Designs: To keep analog and digital sections from interfering.

Why Model Decaps in LTspice?

Simulating decaps isn’t just a nice-to-have it’s essential. Here’s why:

• Catch Voltage Drops: Ensure your ICs get the power they need without dips.

• Reduce Noise: See how well your capacitor filters out unwanted signals.

• Optimize Design: Test different capacitor values and types to find the perfect fit.

In LTspice, you can go beyond just slapping a capacitor symbol on your schematic. You’ll model its real-world quirks, like resistance and inductance, to get results that match what you’d see on a workbench.

How to Model Decoupling Capacitors in LTspice

Let’s break this down into a simple, actionable process. To make a decap model that’s realistic, you’ll need to include its capacitance plus its parasitic effects: equivalent series resistance (ESR) and equivalent series inductance (ESL).

Step-by-Step Guide

1. Open LTspice: Fire up the software and start a new schematic (File > New Schematic).

2. Add a Capacitor: Click the “Component” button (or press F2), type “cap,” and place it where you need it usually near an IC’s power pins.

3. Set the Capacitance: Right-click the capacitor, enter a value like “0.1uF” (0.1 microfarads is common for high-frequency decoupling).

4. Add Parasitics:

   • ESR: This is the resistance in series with the capacitor. Add a small resistor (e.g., 0.1Ω) in series, or use the capacitor’s advanced settings.

   • ESL: This is the inductance, typically tiny (e.g., 1nH). Add an inductor in series or edit the capacitor properties.

5. Connect It: Wire the capacitor between the power line and ground, close to the component it’s decoupling.

6. Simulate: Run a transient analysis (Simulate > Edit Simulation Cmd) to see how it affects voltage stability.

Example: Decoupling a 3.3V Digital IC

Imagine you’ve got a microcontroller running at 3.3V. It switches fast, so you need a decap to keep the power clean. Here’s how you’d set it up:

• Place a 0.1μF capacitor (C1) from the power pin to ground.

• Add a 0.1Ω resistor (R1) and 1nH inductor (L1) in series with C1 to model ESR and ESL.

• Simulate with a noisy power source (e.g., a 3.3V DC source with a small AC component) to check the filtering.

The result? You’ll see the decap smooths out the noise, keeping your IC happy.

Pro Tips

• Datasheets Are Your Friend: Check the capacitor’s datasheet for exact ESR and ESL values.

• Multiple Caps: For wide frequency coverage, use a mix of values (e.g., 0.1μF and 10μF) in parallel.

• Placement Matters: In real circuits, keep decaps close to the IC. In LTspice, this isn’t physical, but proximity in the schematic still reflects intent.

Bondwire Inductance: The Hidden Culprit in High-Speed Designs

What Is Bondwire Inductance?

Bondwire inductance comes from the thin wires usually gold or aluminum that connect a chip’s silicon die to its package pins. These wires might be short, but they act like tiny inductors, especially at high frequencies. A typical bondwire might contribute 1nH of inductance per millimeter of length.

This matters because:

• High-Speed Signals: Inductance can delay or distort fast edges.

• Power Lines: It can cause voltage spikes during transients.

• RF Circuits: It affects impedance and signal quality.

Why Model Bondwire Inductance in LTspice?

Ignoring bondwire inductance is like pretending your car doesn’t need brakes it’s fine until you hit high speeds. Modeling it helps you:

• Predict Signal Issues: Spot ringing or overshoot in data lines.

• Improve Power Delivery: Avoid transient problems in supply lines.

• Match Reality: Ensure your simulation mirrors the packaged chip’s behavior.

How to Model Bondwire Inductance in LTspice

Bondwire inductance is modeled as a simple inductor in series with the signal or power path. Here’s how to do it:

Step-by-Step Guide

1. Locate the Bondwires: Identify where they exist usually between the chip die and package pins (e.g., signal outputs or power inputs).

2. Add an Inductor: Press F2, select “ind,” and place it in series with the path.

3. Set the Value: Right-click and enter the inductance (e.g., “2nH” for a 2mm bondwire).

4. Simulate: Run a transient or AC analysis to see the impact.

Example: High-Speed Data Line

Let’s say you’ve got a chip sending a 1GHz signal through a 2mm bondwire to a package pin. Here’s the setup:

• Add a 2nH inductor (L1) in series with the signal line.

• Connect it to a load (e.g., a 50Ω resistor) to mimic the next stage.

• Simulate with a fast pulse source to check for ringing or delay.

You’ll likely see the inductance slows the signal’s rise time or adds overshoot—critical info for tweaking your design.

Pro Tips

• Check Specs: Chip datasheets or package docs might list bondwire inductance.

• Estimate if Needed: Use 1nH/mm as a rough guide if data’s unavailable.

• Parallel Bondwires: Some packages use multiple wires to lower inductance—model them as parallel inductors.

Visualizing the Impact: Tables for Clarity

Table 1: Decoupling Capacitor Types and Uses

This table helps you pick the right decap based on your circuit’s needs. Ceramic caps shine at high frequencies, while electrolytics handle big, slow power swings.

Table 2: Bondwire Inductance Effects

This shows how bondwire length and signal frequency team up to affect performance. Longer wires at higher frequencies spell trouble!

Putting It All Together: A Practical Example

Let’s combine both concepts in a single LTspice simulation. Imagine a high-speed microcontroller with a 3.3V supply and a 1GHz data output. We’ll model:

• A 0.1μF decap with 0.1Ω ESR and 1nH ESL on the power line.

• A 2nH bondwire inductance on the data output.

Steps

1. Schematic Setup:

   • Add the MCU as a voltage source (3.3V) with a decap network (C1, R1, L1).

   • Add a pulse source for the data line, followed by a 2nH inductor (L2) and a 50Ω load.

2. Simulation:

   • Run a transient analysis for 10ns to see power stability and signal behavior.

3. Results:

   • The decap keeps the 3.3V line steady despite noise.

   • The bondwire inductance adds slight ringing to the data signal—something to address with damping or layout tweaks.

This dual approach ensures both power integrity and signal quality are on point.

FAQ: Your Burning Questions Answered

How do I pick the best decoupling capacitor for my circuit?

It depends on the noise you’re fighting. For high-frequency stuff (like digital switching), go with a low-ESR ceramic cap around 0.1μF. For slower power ripples, a bigger tantalum or electrolytic might do the trick.

What happens if I ignore bondwire inductance?

In low-speed circuits, probably nothing. But at high frequencies, you’ll get signal delays, ringing, or worse data errors. Modeling it helps you avoid surprises.

Can LTspice show me noise reduction from decaps?

Yep! Add a noisy source (like a sine wave on your DC supply) and simulate. Watch how the decap flattens it out.

How do I find bondwire inductance values?

Check the chip’s datasheet or package specs. No luck? Estimate 1nH per millimeter of wire length as a starting point.

Any tricks to reduce bondwire effects?

Shorter wires help, or use multiple wires in parallel. On-chip decoupling or better packaging (like flip-chip) can also cut inductance.

Wrapping Up

Mastering LTspice to model decoupling capacitors and bondwire inductance is a superpower for any circuit designer. Decaps keep your power clean, while bondwire modeling ensures your signals stay sharp together, they’re the key to reliable, high-performance electronics. With the steps, examples, and tables here, you’ve got everything you need to start simulating like a pro.

So, grab LTspice, experiment with these techniques, and watch your designs come to life. Got more questions? Dive into LTspice forums or tutorials for even deeper insights. Happy simulating!
